Nixie @Nixie@nixie.name

· 3w ago

Replying to

It printed beautifully externally, absolutely zero complaints. Tweaked the insides with a sharp edged ruler and that's it. The original PLA cover fit like a glove. No need to tweak anything given the results, so I hit reprint right away. Back to sleep!

5

4

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Well, the fan in the 0,4mm.nozzle kinda died? spins freely and doesn't throw an error, but started making an awful noise while spinning. Will save it for extreme need, but in the mean time I just stole the fan from the 0,8mm nozzle. Also, compared it to a.different nozzle and it definitely spins sliiightly less freely. It is possible to change the bearings, so I may do that for fun (ceramic ones? 🤣) Definitely buying spares in the future.

3

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Well, my plan of using my morning well, went to shit and I just slept over my alarms. Oh well, shit happens. Let's put 4 covers to print now.

3

3

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

The single reel feeder has been setup (I have procrastinated for way too long on that) The PPA-CF has been dried (85ºC @ 9h) Now the adventure begins:

3

7

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

It's printing beautifully.

3

6

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

And because I'm a fancy fuck, I added spring detents for the anchors.

3

1

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

That'd be dry.

4

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Okay, I just decided to put the filaments inside and add ALL the dessicant that was stored in the boxes. A tad overkill, but wasn't going to waste it, and I can delay buying 1kg silica gel (it's almost 40€ woth shipping and duties) Best part? Finally not having to worry about dust on my reels or samples!! I always never knew what the hell to do with them, now I can just reserve a spot for them. After confirming it will not plateau on that 21%, I'll start drying all the filaments properly.

4

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to on nixie.name

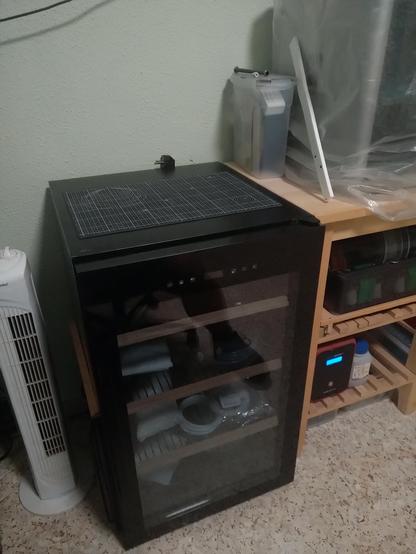

Got panel access!! Let's see what all that shit is! Also, good thing I actually opened it, there was a crapload (from what should be zero) of condensation inside. This will get new sealant when finished.

4

1

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Hmm...I just made the whole thing much larger (like 60mm longer) And also, I'm putting the rear slots slightly more vertical to ease printing.

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

33 minutes left. I went to sleep a while ago, but woke up hungry. Really tempted to wait it out so I can just hit reprint while the printer is still hot and ready, so tomorrow Incan have ready a pair of units. Then I can later print 4 covers in one go and match quantities. The sloped part does suffer a bit, bit I think I can live with that. I could probably tweak the print for an even flow pattern, but I don't know how to do that. 🤣

2

5

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

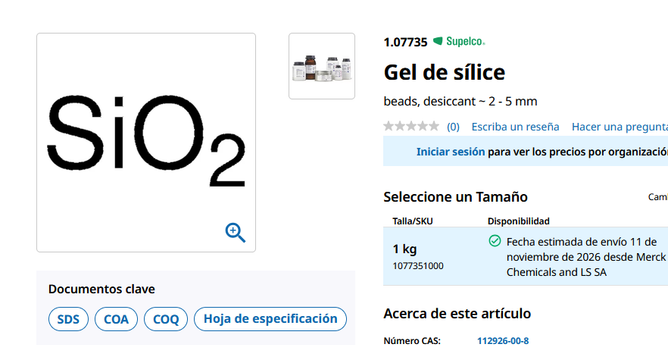

HMM...how thrustworthy is this cobalt free dessicant? I know the orange-green one is safe, but I really don't like the colors, I know my brain is going to go "Green, that's good" and forget.

2

10

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Forbidden butt plugs:

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

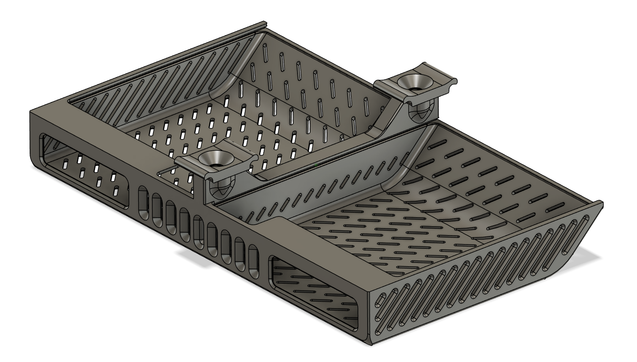

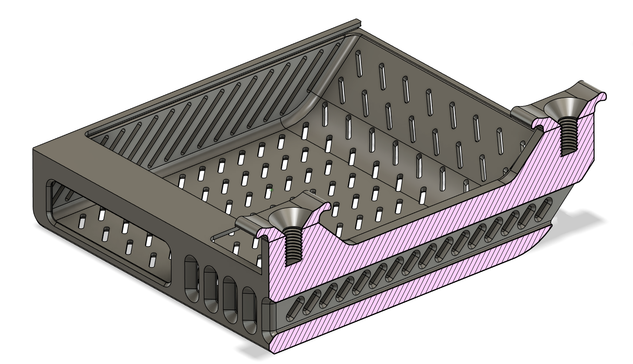

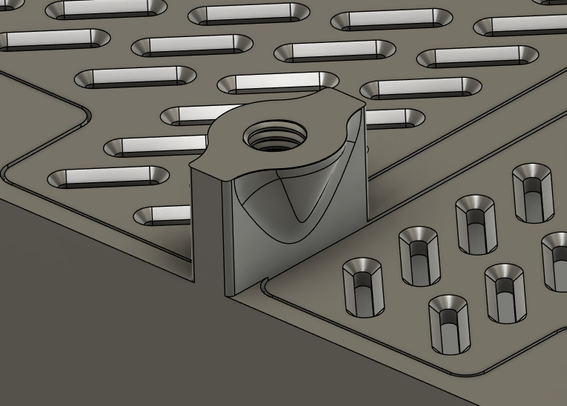

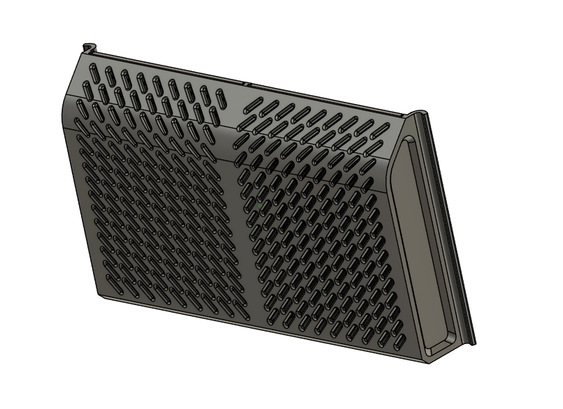

Okay, I beefied up the central spine, and also opened up all the closed sides. Interestingly, I made the central vent, that would otherwise have been aesthetic, a tunnel all the way through and slotted the central spine. I think the final versions will be printed in PPA-CF fibrecore, so the whole assembly can witthstand itself being so slotted. Also, the top anchors will be using chamfered M5*8 screws, that I casually had the exact size I needed.

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

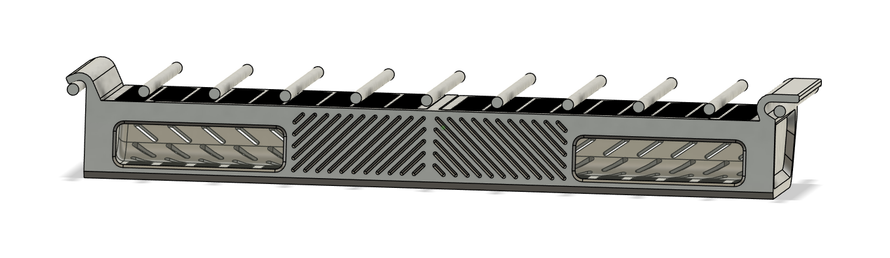

Three may be a bit too much:

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

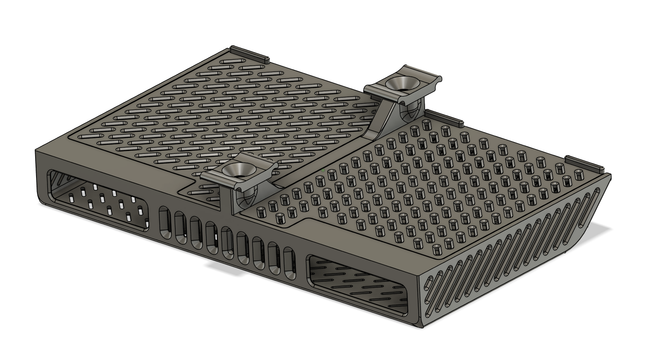

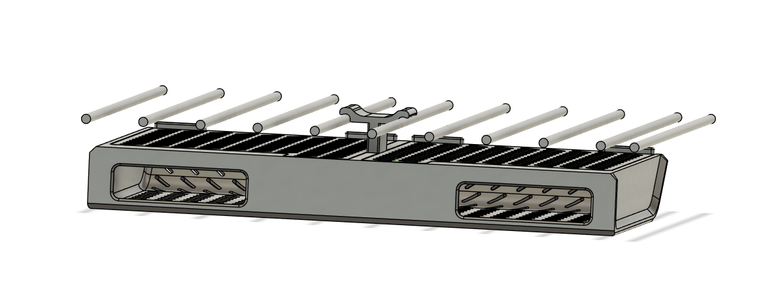

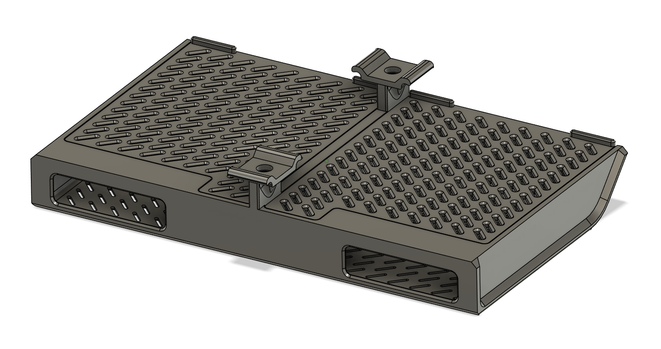

Meanwhile that prints...I thought about this. A central mounting point that can be used by rotating the box 90º to go through the bars, then rotate it again 90º and sit it in place.

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

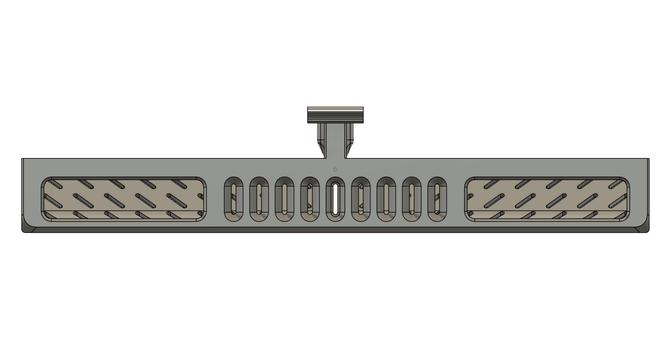

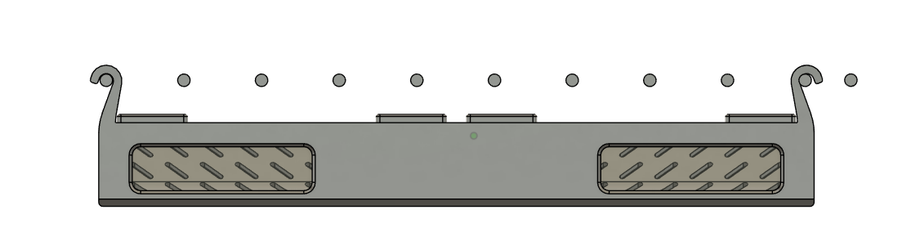

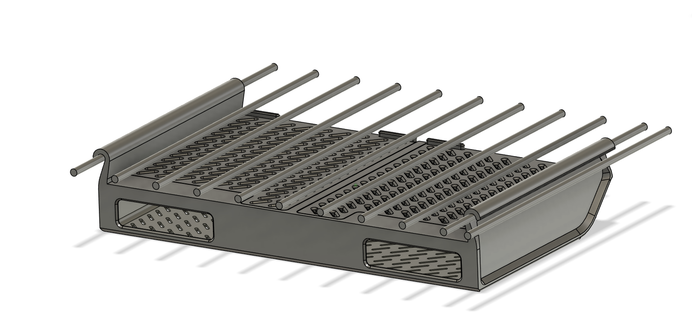

In the end I tweaked the box width so I could more easily interact with the evenly spaced bars and ignore the weirdly spaced one to the right. (simmetrical on both sides of the wire shelf) I'm gonna print a 30mm tall test (to test the bead traps too) and see if the spacing works.

2

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

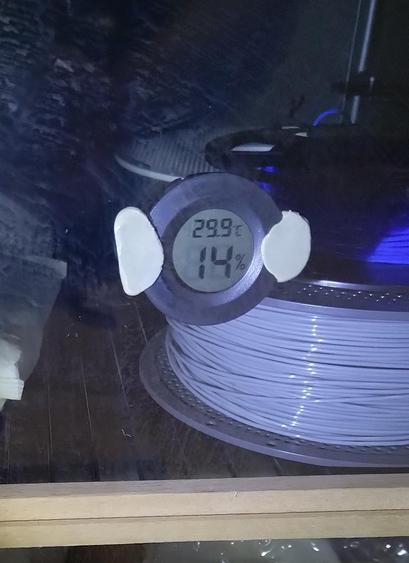

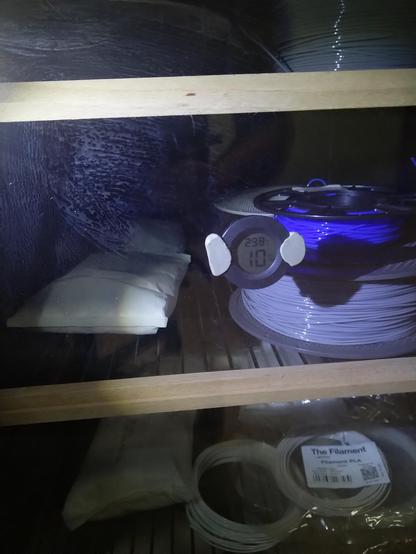

30 minutes from 33 to 10% (just saw the digit change from 11 to 10) Ye, I would say that for the moment, works.

3

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Plenty of space for a blue pill in there. it is tempting to just fuck it, remove EVERYTHING and just use the stm32, a separate oled display of suitable size and six touch modules glued to the glass.

3

1

1

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Ohhh, nice! We got a separate LCD controller on one end: HT1621B, so I can definitely hijack that one to display whatever I want. The other chip is a touch panel (and lcd controller, but I guess they didn't want to use its capability) I wonder if there are UART humidity sensors. I HATE RUE WINNING. (again, JK) Also, if y'all are enjoying my feet pics, give me some money!

3

1

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Sometimes I forget at what scale I'm working. That's...a LOT of dessicant. 200cm3 per unit! 400 per tray, 1200 total. However, I have no idea what the density of normal dessicant silica gel (in sphere form) is. Any ideas?

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

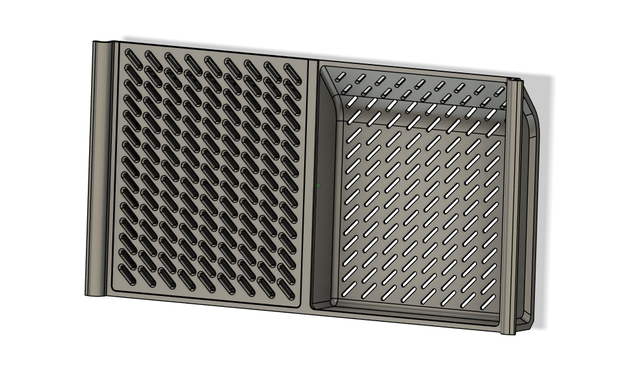

There you go. I may move the windows closer to the center or to the edges...just pure aesthetics tho.

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

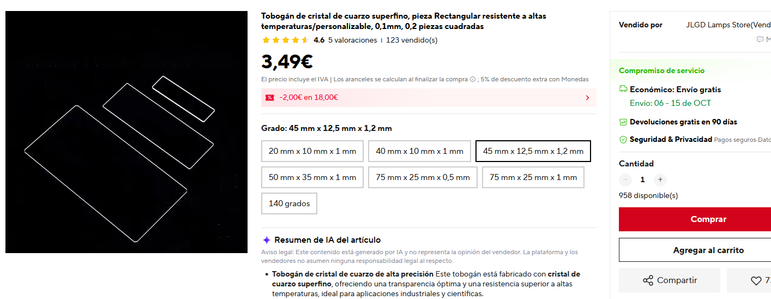

Now, I only need to find suitable glass to put on the front, because I want direct color change sight of the thing, not only depend on what the humidity monitor says. YESS, acceptable price. 45x12,5x1,2mm Nice! And it's quartz glass because I don't want it to get cloudy when the beads roll and try to scratch it. WHAT, it's my project, I can do whatever I want.

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

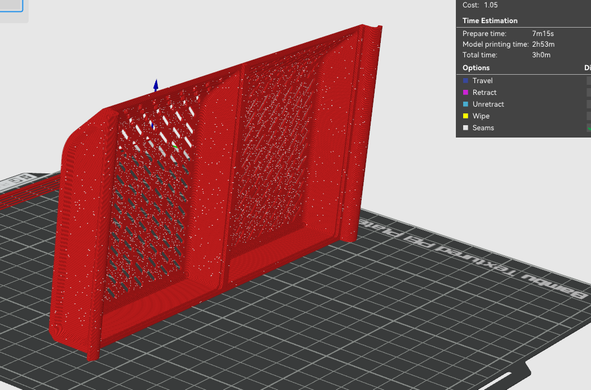

Just testing if it will print without supports. Yes, it will (supports enabled) 3h print with a 0,4mm nozzle, 0,2mm layer.

2

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

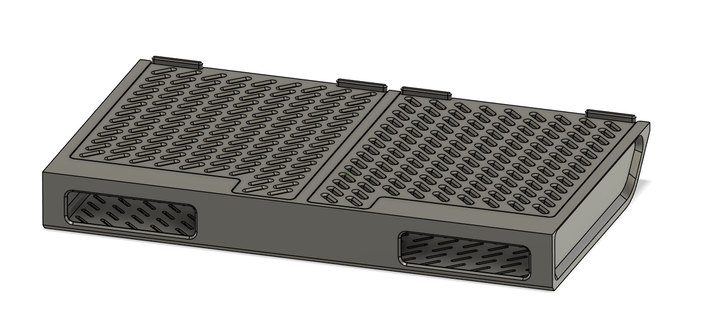

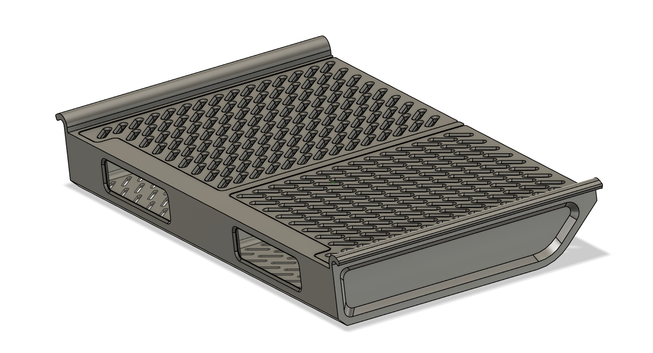

Okay, spent the evening tinkering around with dessicant boxes for the thing. At some point I wanted to try using the mess trapping technique, however, I remembered I want to print the boxes in vertical orientation, so whatever clamps I make, have the best possible strenght: This is what I have come up so far. Not necessarily the final product, but it's a start. The idea is to have two per shelf, if not 4. And I haven't figured out the holding yet.

2

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

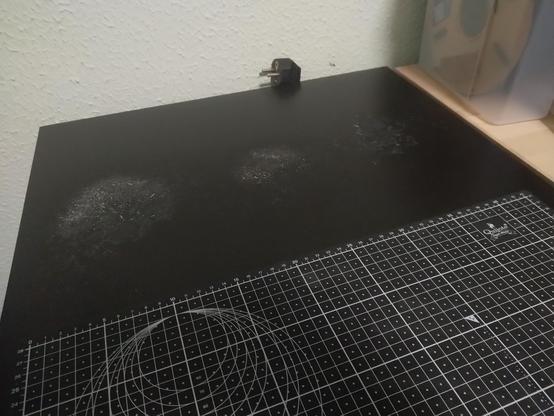

Unrelated to the function of the unit, it has very obviously been used as a shelf. No idea what three items would damage the paint like that, but whatever. Unfortunately they don't make cutting mats in 500*500mm, wich would have been ideal, so I had to choose between a smaller A3 size or get an A2 and cut it down. In the end I accidentally found a black A3 and went with that. In the future I will maybe think about painting or some other cover. But for now it looks much better as work surface.

2

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

3h later.

2

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Okay, I just sealed the draining port, put a pair of dessicant bags inside and found one of the cheapo humidity sensors I had around. Let's see how much before it goes down to 10%

2

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Sorry, got carried away removing all the sealant. After doing so, the panel cover is easily removable with two screws, until it is decided no more access is needed and will be sealed back. Somehow, I still don't want to remove the cooling, not sure what use could I have for it in the future, but hey, it's fully functioning, would be a shame to fuck it up for no reason.

2

1

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

I just had to remake this from scratch because my bearings where not the ones the original designer used. Mildly annoying.

1

1

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Final view. I will attach the glass with UV glue, I should remember to buy that, too.

1

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

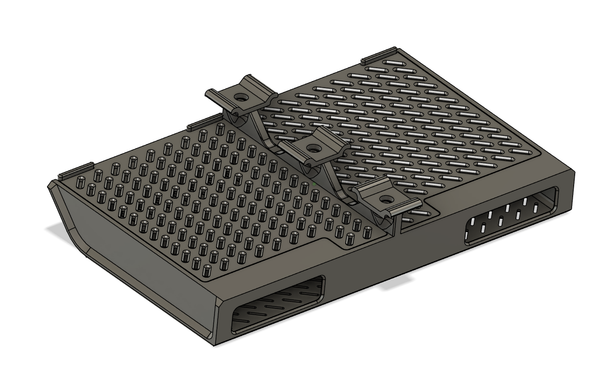

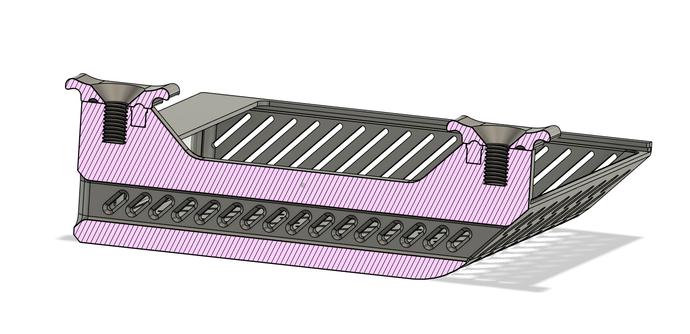

What about two, with two M5 screws so the top pieces can rotate?

1

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

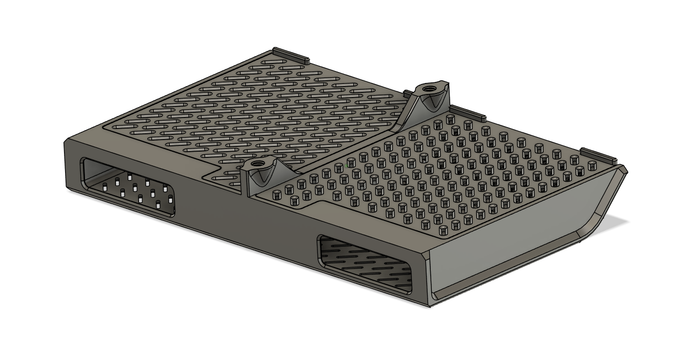

Slopes to avoid supports... But this is starting to look kinda cool.

1

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

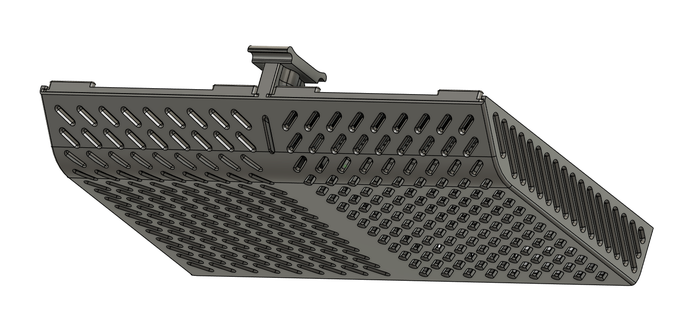

Did some more tweaking around. Reduced the ventilation slots from 1.5 to 1.25mm, otherwise, the vertically printed ones get made a tad too large for my liking. Made the emptying apertures much larger than yesterday, a small test showed me the beads would not flow easily otherwise. Also, put them in the center, and left the windows on the sides. I am still unsure on the mountin method, tho.

1

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

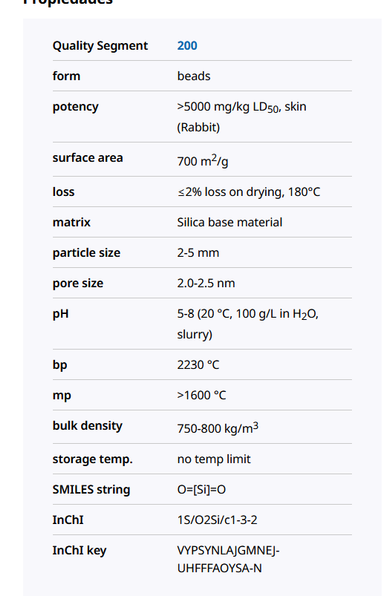

So, the best I found is about 800Kg/m3 About 0,8g per cm3, or 320g per tray or about 2Kg total. I mean, sounds about right for dessicant.

1

2

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

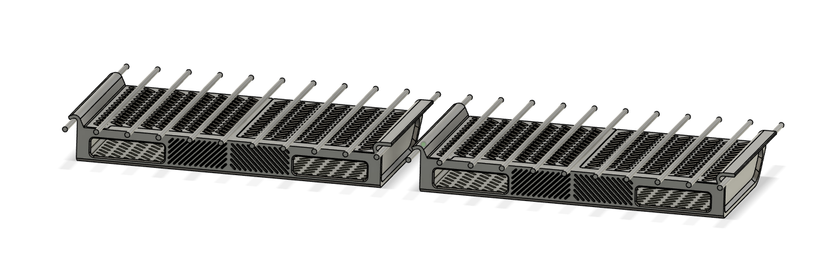

Okay, let's see if this arrangement works out. Note: The windows are vertically offset because the wood tray fronts actually hide a bit of the thing.

1

1

0

0

Nixie @Nixie@nixie.name

· 3w ago

Replying to

Meanwhile someone measures the dessicant, I just realized, I can always make the trays shorter to hold less volume-weight. No, I can't make them less tall, since I want to be able to see them past the wood inlay (those look classy and I want to leave them in place, BOOO) But I'm dumb and this shit takes me a while to think. XDDD

1

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

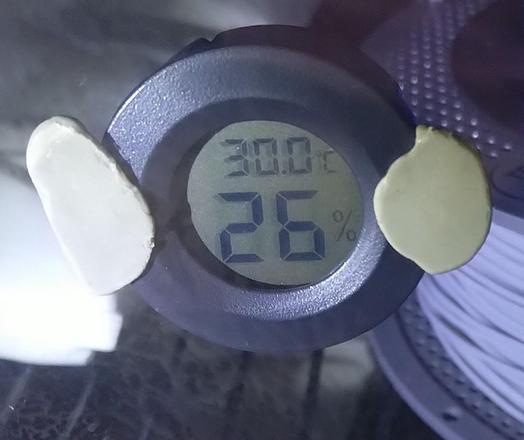

In the time it took me to write that, the rh dropped from 33 to 26% Go, go, go! I mean, to be fair, it has like 4Kg of dessicant in there, it better be drying fast af. (in the time of edit, already down to 23%)

1

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

I have been thinking. (run, everybody!) The box is already sitting at about 30ºC and we're not in full summer. Maybe this thing will get awfully hot (not saying 60+ of course, but just uncontrolled hot). Since I'll be artificially keeping the humidity really low, I wonder if it wouldn't be convenient, when I have my own controller, to run the chiller, from, let's say, anything above 40ºC, down to 35ºC. There shouldn't be any condensation on the cold side anyway, right?

1

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

6,5h later (and and opeing the door once to put tue shelves back)

1

1

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

1h later.

1

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Also gave the shelves a wash, they had stored food and were a smidge tacky, but not too much.

1

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

Half an hour later, 43% I know I haven't added that much dessicant for this volume. Later on I will add some reusable silicagel on high surface containers (just made that thing up)

1

2

0

0

Nixie @Nixie@nixie.name

· 4w ago

Replying to

This I want to repair, it annoys me to see it rusty:

1

2

0

0

Nixie @Nixie@nixie.name

· 4mo ago

It's been a while since I postd anything wind turbine related. Holy shit: https://www.youtube.com/watch?v=mL_MgUakQSc

Bending of a 140m wind turbine tower 2.0

10

1

5

0

Nixie @Nixie@nixie.name

· 4mo ago

Me: My back hurts a little, must have lifted something wrong yesterday.

Also me: LET'S PLAY BEATSABER AFTER A FEW YEARS

I did normal songs, nothing insane, tho. :D

Honestly, feels liberating to just be able to play without concern or fear of retaliation/reprimand/silent treatment.

7

2

0

0

Nixie @Nixie@nixie.name

· 4mo ago

Okay, my next step is actually learning to leviwand while riding the EUC.
That's gonna surely turn heads.

Definitely can't afford a led leviwand yet, so I'll probably train with a stick anyway.

https://www.youtube.com/watch?v=opFvPObuUWw

Levitation Wand for BEGINNERS - Start here!

5

3

1

0

Nixie @Nixie@nixie.name

· 4mo ago

Diverting from yesterday's tone, here's something funny.

A few days ago it was the birthday of the first person I met from the rpg club, and somehow, my two brain cells managed to bounce against eachother AND spark. I barely know the person, but there are some common themes I could pick up from, so, since I was at work, I quickly bodged this:

Laser over spray painted aluminium leftover of apropriate size.

It's not much, but it reminded me for a brief while, how my brain used to operate.

4

0

1

0

Nixie @Nixie@nixie.name

· 4mo ago

Replying to

So, that's more or less how this is gonna be. I may move the small compressor to the ground, next to the small UPS And I should probably make a second drawer like I have for the AMS, to fully access all the things when I have all the toolings in there. I also should get some sort of reservoir for the compressor, not sure what to do about that, tho.

4

1

0

0

Nixie @Nixie@nixie.name

· 4mo ago

Replying to

@f4grx@chaos.social Well, after all, the wood only got wet on one side, and given the board parts grain, it can only swell up in one direction. I'll report back when I see it goes back to shape.

1
